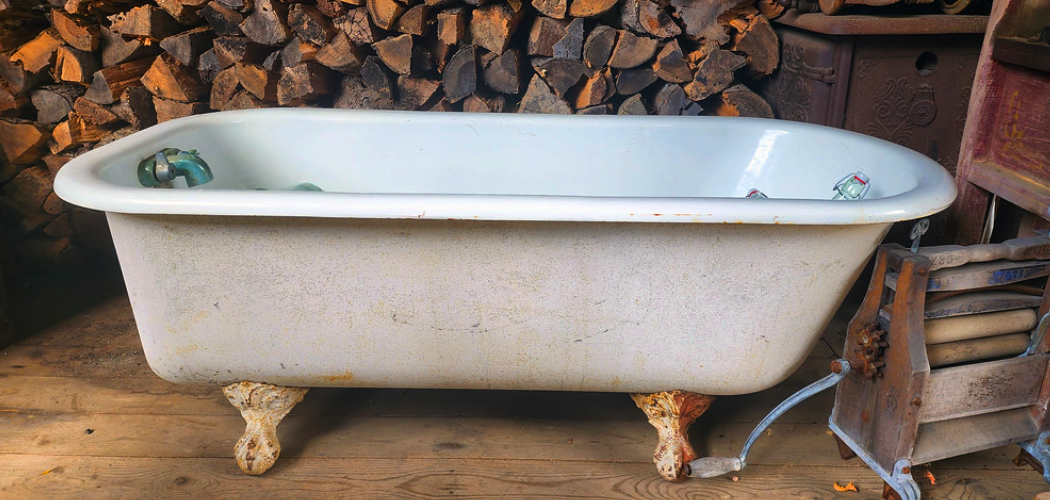

How Do Clawfoot Tubs Drain

Clawfoot tubs are a timeless addition to any bathroom, known for their vintage charm and elegant design. However, their unique standalone structure often raises questions about how they operate, including how they drain. Understanding how do clawfoot tubs drain is essential for proper installation and maintenance, ensuring a seamless and functional bathing experience.

How Do Clawfoot Tubs Drain

The Timeless Appeal of Clawfoot Tubs

Clawfoot tubs have captivated homeowners for generations with their classic aesthetic and undeniable charm. Originating in the 19th century, these tubs were a symbol of luxury and sophistication, often found in the most elegant homes. Their distinctive design, featuring elevated feet and a freestanding structure, sets them apart from modern built-in tubs, making them a focal point in any bathroom. Whether styled in a vintage or contemporary theme, clawfoot tubs seamlessly blend functionality with artistic beauty, making them a timeless choice for those seeking both comfort and style.

Anatomy of a Clawfoot Tub Drain System

The drain system of a clawfoot tub is distinct from that of traditional built-in tubs, primarily due to its freestanding design. At its core, the drain system typically consists of several key components that work together to ensure efficient water drainage. The tub features a drain hole at its base, which connects to a drainage pipe. This pipe often runs externally beneath the tub, making it visible and contributing to the tub’s vintage aesthetic.

Additionally, most clawfoot tubs include an overflow drain, a secondary opening located higher up on the interior wall of the tub. This feature prevents water from spilling over the edges by directing excess water into the drain system. The visible plumbing can be crafted from various materials, such as brass, chrome, or nickel, allowing homeowners to customize the appearance to suit their bathroom’s style. By understanding these components, you can better appreciate how clawfoot tubs drain while ensuring their optimal function in your home.

10 Methods How Do Clawfoot Tubs Drain

1. Traditional Drain System for Clawfoot Tubs

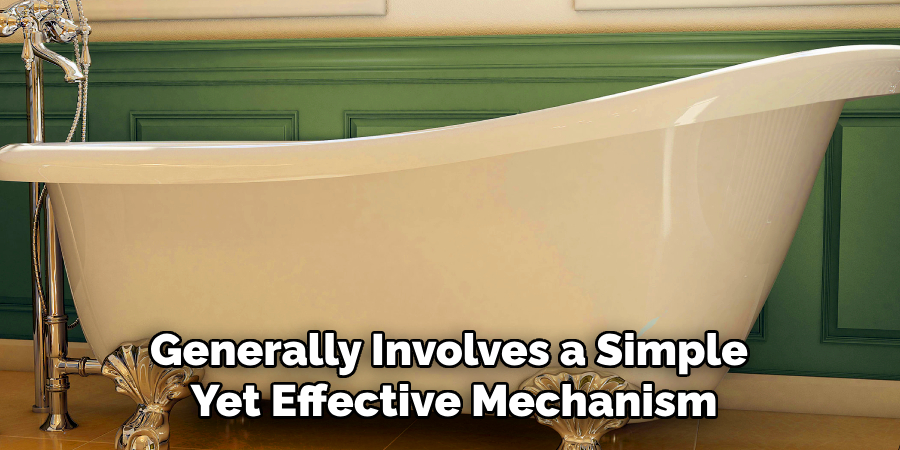

Generally Involves a Simple
Yet Effective Mechanism

Clawfoot tubs have a timeless charm, often evoking images of vintage bathrooms. A traditional clawfoot tub drainage system generally involves a simple yet effective mechanism. The drain assembly consists of a drain pipe that leads out of the tub and into the home’s plumbing system. The drain pipe is typically connected to a stopper and overflow system that ensures water is safely disposed of without overflowing. The traditional drain system relies on gravity, with the water flowing down the drain and into a waste pipe, typically made of metal or PVC, which connects to the home’s main sewer line or septic system.

2. Modern Drain Systems in Clawfoot Tubs

While traditional clawfoot tubs feature more basic drain systems, many modern versions of these tubs are designed to meet updated plumbing standards. Modern clawfoot tubs may include more advanced drain assemblies that are equipped with high-quality materials such as chrome, brass, or stainless steel, which are not only durable but also aesthetically appealing. These contemporary drainage systems often have better seals, preventing leaks and improving water flow efficiency. Additionally, they often feature a higher-quality stopper mechanism that offers easier operation and enhanced water control compared to older models.

3. Use of Overflow Drains in Clawfoot Tubs

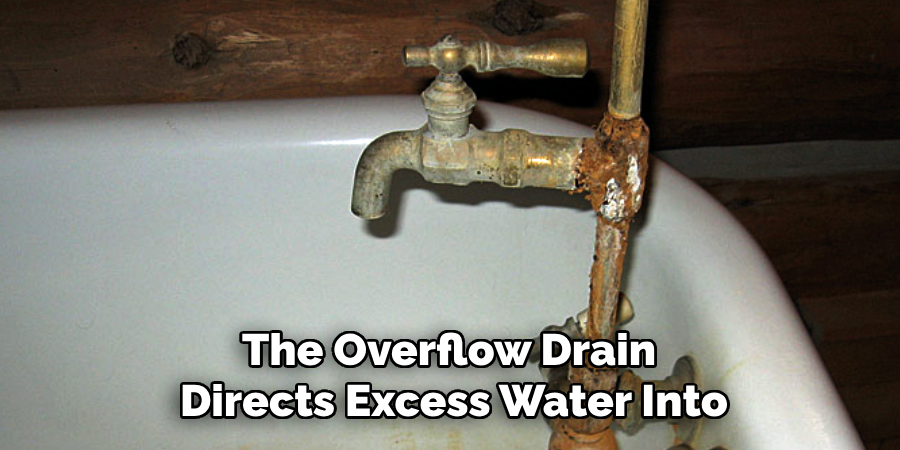

The Overflow Drain
Directs Excess Water Into

An essential component of any clawfoot tub’s drainage system is the overflow drain. This drain serves as an important safety feature that prevents the bathtub from overflowing when the water level reaches a certain point. Located near the top of the tub, the overflow drain directs excess water into the main drainage pipe, ensuring that no water spills over the edge. In older tubs, the overflow drain may be manually adjusted, but in modern versions, it is typically designed to function automatically, offering more convenience. The overflow system ensures a controlled and efficient drainage process, avoiding the risks of flooding.

4. P-Trap and Its Role in Clawfoot Tubs Drainage

A critical component in the drainage system of a clawfoot tub is the P-trap, which is used to prevent unpleasant odors and gases from entering the bathroom. The P-trap is a curved pipe installed just below the drain, holding a small amount of water. This water forms a seal that blocks sewer gases from rising back into the room. Without a properly installed P-trap, the plumbing system could emit foul smells that would degrade the bathroom environment. Most clawfoot tubs are equipped with a P-trap, making it a vital part of ensuring hygienic and efficient drainage.

5. Exposed Drain Lines in Clawfoot Tubs

In many traditional clawfoot tub designs, the drain lines are often exposed, offering a vintage aesthetic and a more functional system that is easier to repair. The exposed piping typically runs from the tub’s drain opening to the home’s main drainage system. These pipes are often made of metal, and they contribute to the overall aesthetic of the bathroom, adding a rustic or classic feel. The exposed nature of the pipes allows for easier access when maintenance or repairs are needed, as opposed to modern tubs where the drain lines may be hidden behind walls or under the tub itself.

6. Freestanding Drain System for Clawfoot Tubs

A modern variant of the clawfoot tub is the freestanding tub, which is not attached to the wall. This setup often requires a freestanding drain system, which differs from the typical wall-mounted plumbing. In freestanding clawfoot tubs, the drain line extends directly from the tub’s drain hole to the floor, where it connects to a floor-mounted waste and overflow system. This method offers a stylish and flexible drainage solution, especially for bathrooms where the tub is placed in the center of the room or positioned away from walls. The freestanding drain system is usually accompanied by decorative elements that enhance the tub’s overall design.

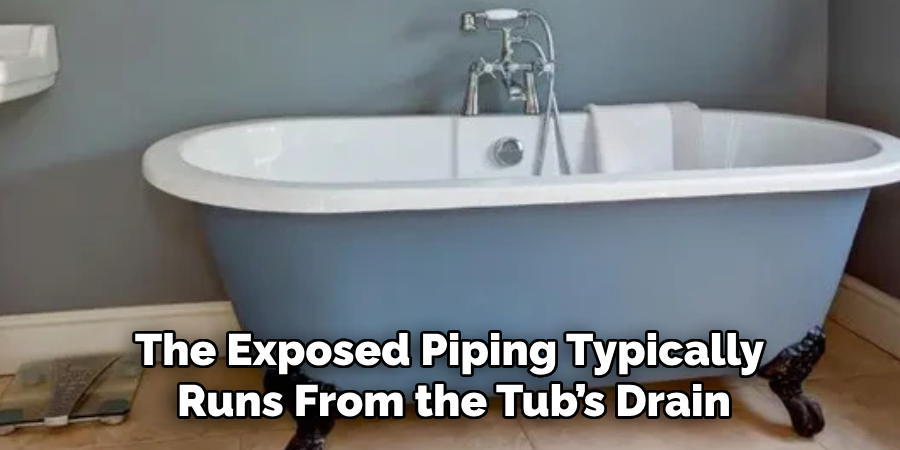

The Exposed Piping Typically
Runs From the Tub’s Drain

7. Connecting a Clawfoot Tub to Existing Plumbing

For homeowners looking to install a clawfoot tub in an existing bathroom, one of the main challenges is connecting the tub to the home’s plumbing system. This often requires modifications to the existing plumbing, particularly if the tub is freestanding or has a unique drain configuration. In some cases, additional plumbing work may be needed to adjust the water supply and drainage lines to accommodate the tub’s specific needs. For instance, the drain pipe may need to be extended or rerouted to align with the tub’s drain hole. Working with a professional plumber is advisable to ensure that the connections are made securely and efficiently.

8. Drain Stopper Mechanisms for Clawfoot Tubs

A key feature of any clawfoot tub’s drainage system is the drain stopper, which is used to control the flow of water in and out of the tub. There are various types of drain stoppers used in clawfoot tubs, including lift-and-turn, push-and-pull, and trip lever stoppers. These stoppers function by sealing the drain to hold water inside the tub during use, and then they can be easily operated to open and allow the water to drain out. The trip lever stopper, for example, involves a lever attached to the overflow drain, allowing the user to control the flow of water with ease. The proper stopper mechanism ensures efficient drainage and prevents leaks.

9. Waste and Overflow Assembly in Clawfoot Tubs

The waste and overflow assembly in a clawfoot tub is an important component of the drainage system. It consists of two parts: the waste drain, which removes the water from the tub, and the overflow drain, which ensures that the water doesn’t spill over the edge when the tub is full. The two parts are typically connected by a single drain line that runs out of the tub and into the home’s plumbing. The waste and overflow system is often the most complex part of the clawfoot tub’s drainage setup, requiring precise installation to ensure everything operates smoothly. It is crucial that the system is properly aligned to prevent leaks and ensure effective water removal.

10. Maintenance of Clawfoot Tub Drains

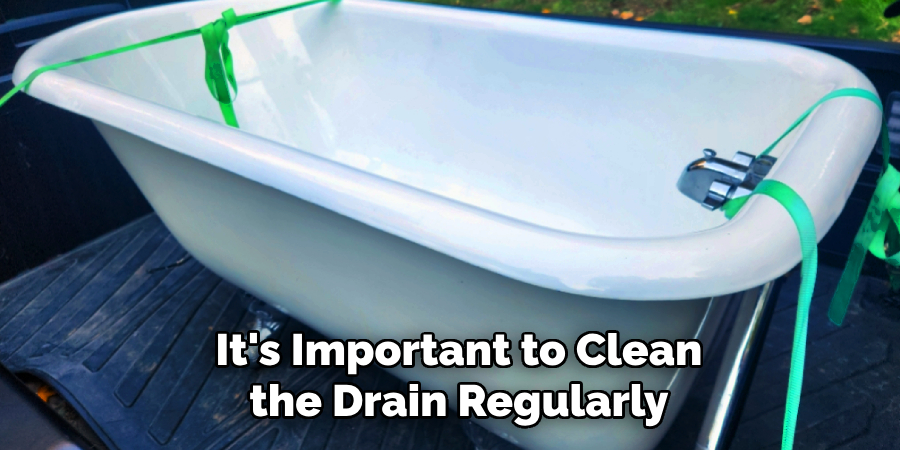

 It's Important to Clean
 the Drain Regularly

Regular maintenance is essential for keeping the drainage system of a clawfoot tub in good working condition. Over time, mineral deposits, soap scum, and hair can build up in the drain lines, leading to slow drainage or even clogs. To maintain optimal drainage, it’s important to clean the drain regularly. You can use a mixture of vinegar and baking soda to break down deposits and flush the pipes with warm water to remove any buildup. Additionally, ensure that the drain stopper and overflow mechanisms are functioning properly by testing them periodically. If you notice any leaks or other issues, it’s essential to address them promptly to prevent further damage.

Conclusion

Clawfoot tubs offer a timeless elegance that enhances the aesthetic and functionality of any bathroom. Their unique drainage systems, from the exposed drain lines to the waste and overflow assemblies, play a vital role in their operation. Proper installation and maintenance of these components ensure efficient water removal, preventing issues such as leaks or clogs. Whether you are restoring a vintage clawfoot tub or installing a new freestanding model, understanding the intricacies of its plumbing system is essential. So, there you have it – a quick and easy guide on how do clawfoot tubs drain.
